Low filtration 2 mm filters

The FiltriNext 2 mm low filtration filters are three-dimensional polyester filters metallised with nickel and treated with a titanium dioxide sol which if used in combination with UVA LEDs with a wavelength of 365 nm or UVC with a wavelength of 260 nm, activate a photocatalysis process capable of killing bacteria and oxidizing contaminating species.

The low filtration 2 mm FiltriNext filters have a long life, thanks to their three-dimensional structure capable of blocking above all solid particulate matter and bacteria, without clogging. They can be easily regenerated by washing (up to 10 times – also in the dishwasher)

Applications

FiltriNext filters may be used:

in existing heating, air conditioning and ventilation systems, replacing or supplementing traditional HEPA filters
in domestic refrigerators or refrigerated counters in shops and supermarkets to improve safety and food preservation
in purifiers for specifically designed indoor environments
in wardrobes, shoe racks and other furniture
in special car purifiers

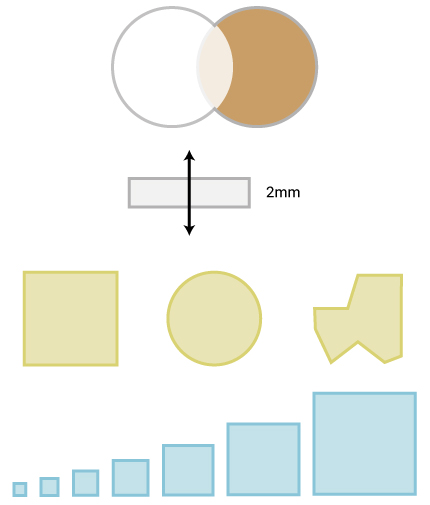

Characteristics

Types

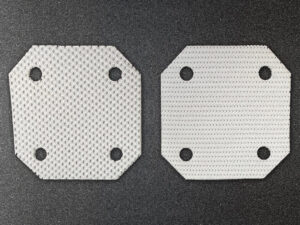

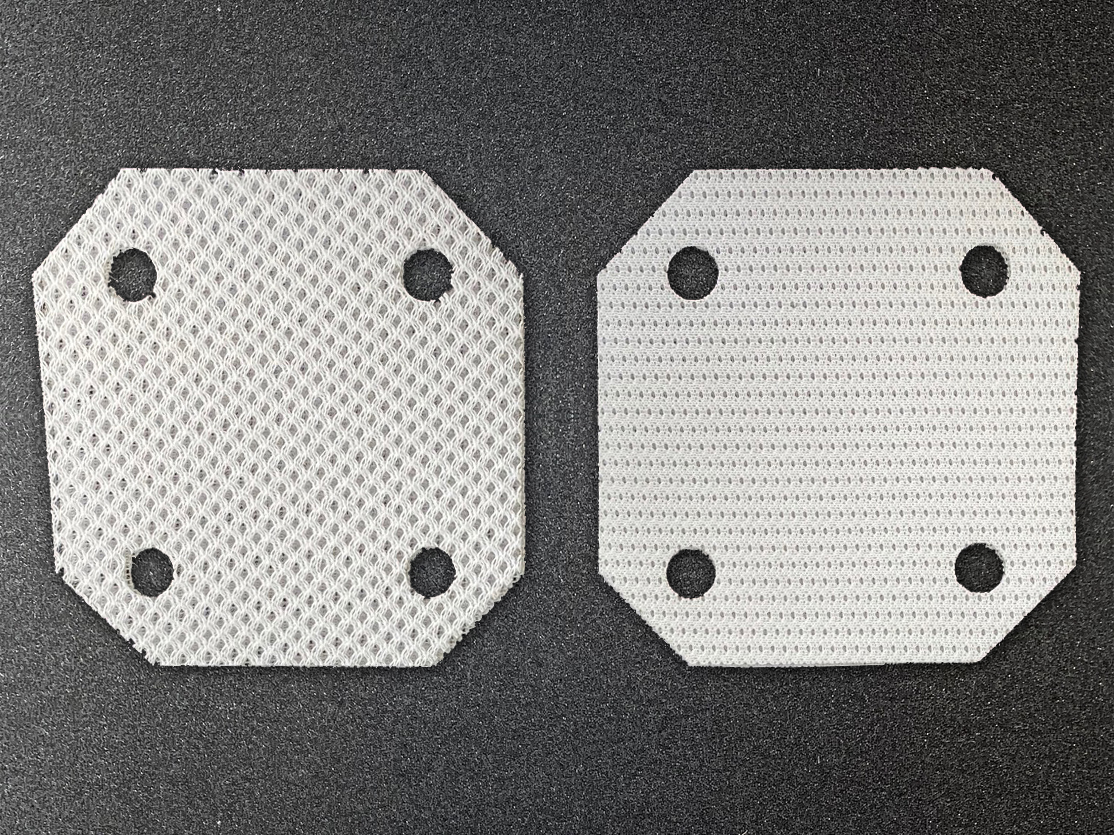

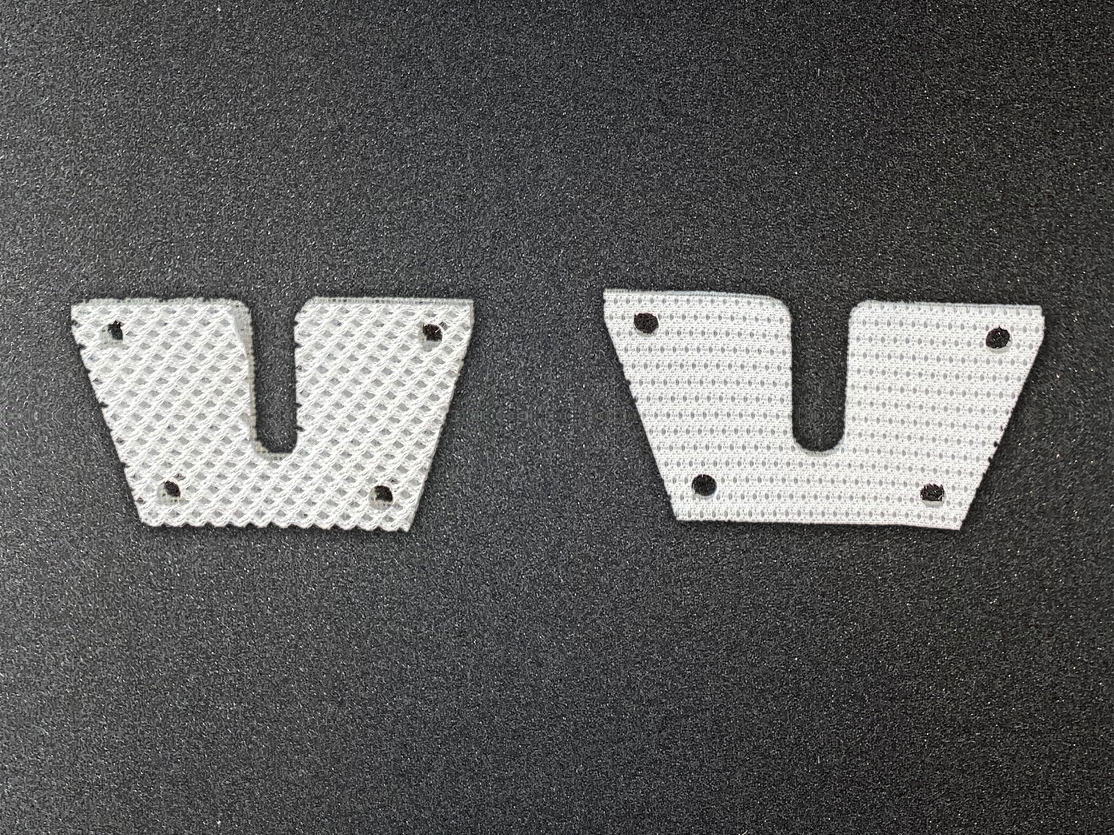

three-dimensional polyester (white colour finish), with titanium dioxide (TiO₂) photocatalytic surface treatment

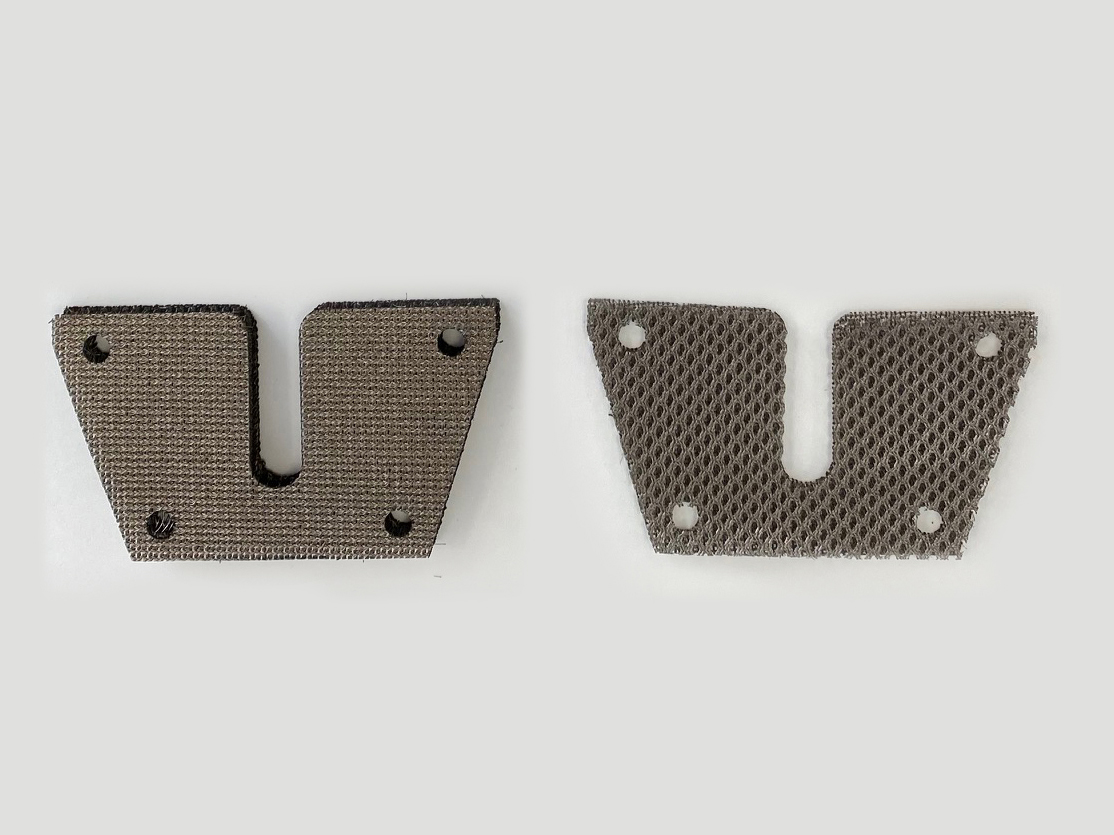

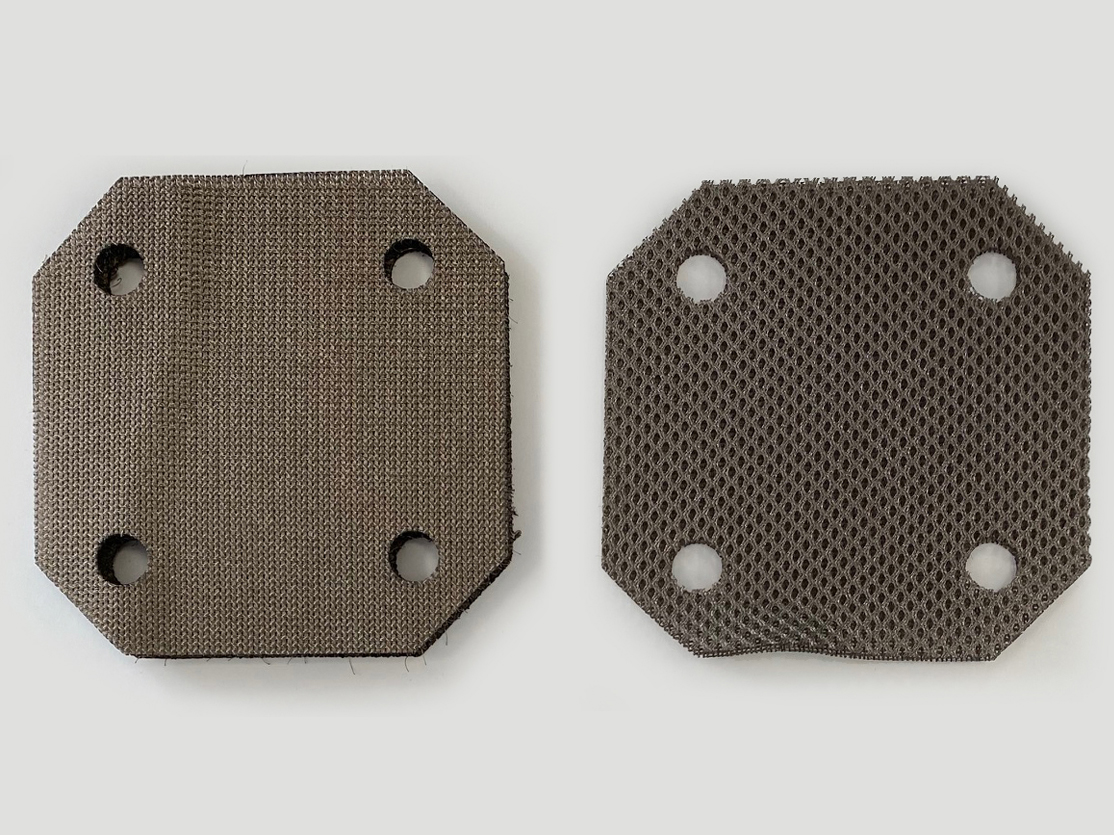

nickel metallised three-dimensional polyester (metallic finish), with photocatalytic titanium dioxide (TiO₂) surface treatment

Thicknesses

2 mm

Shapes

rectangular

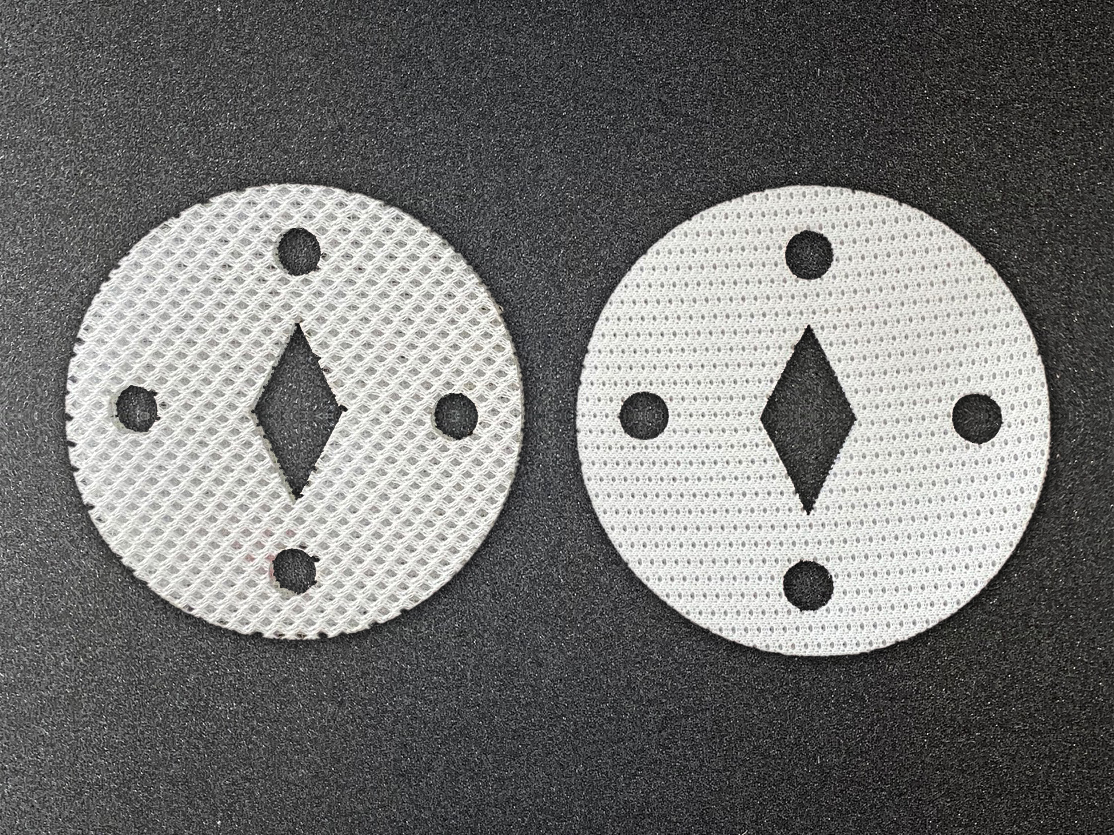

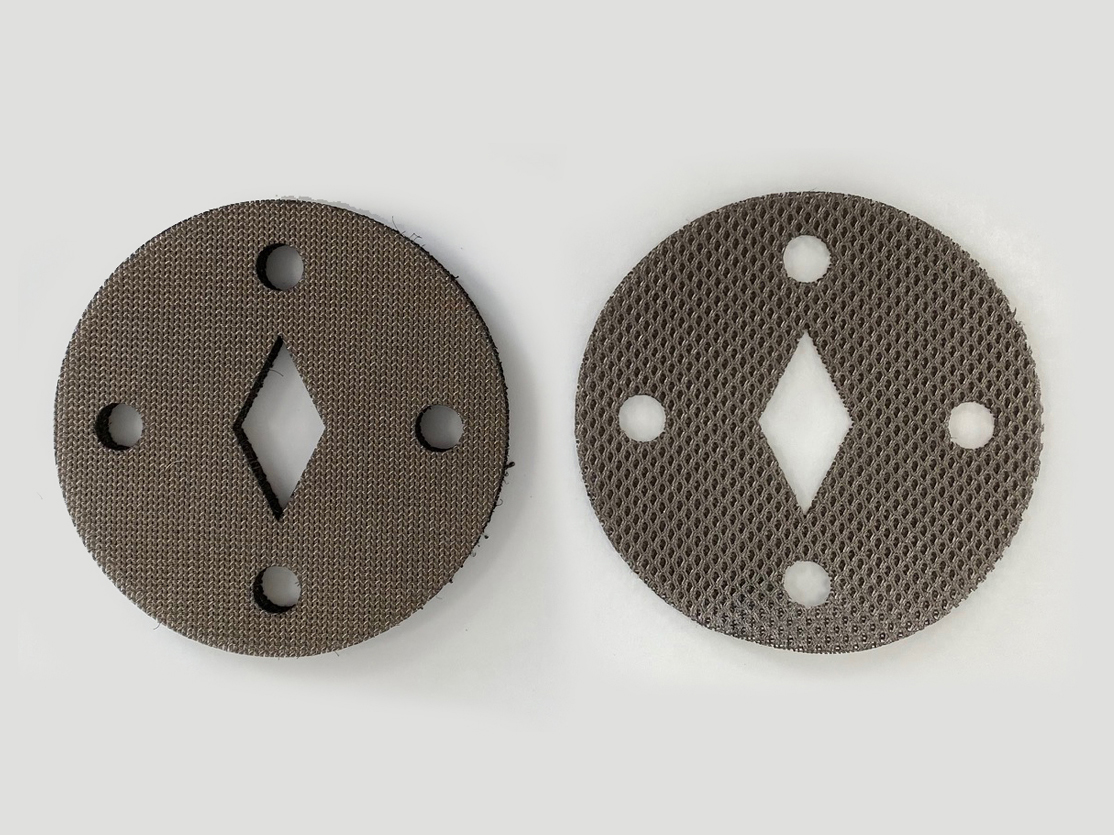

circular
to specification

Dimensions

any size (maximum 900 × 1200 mm)

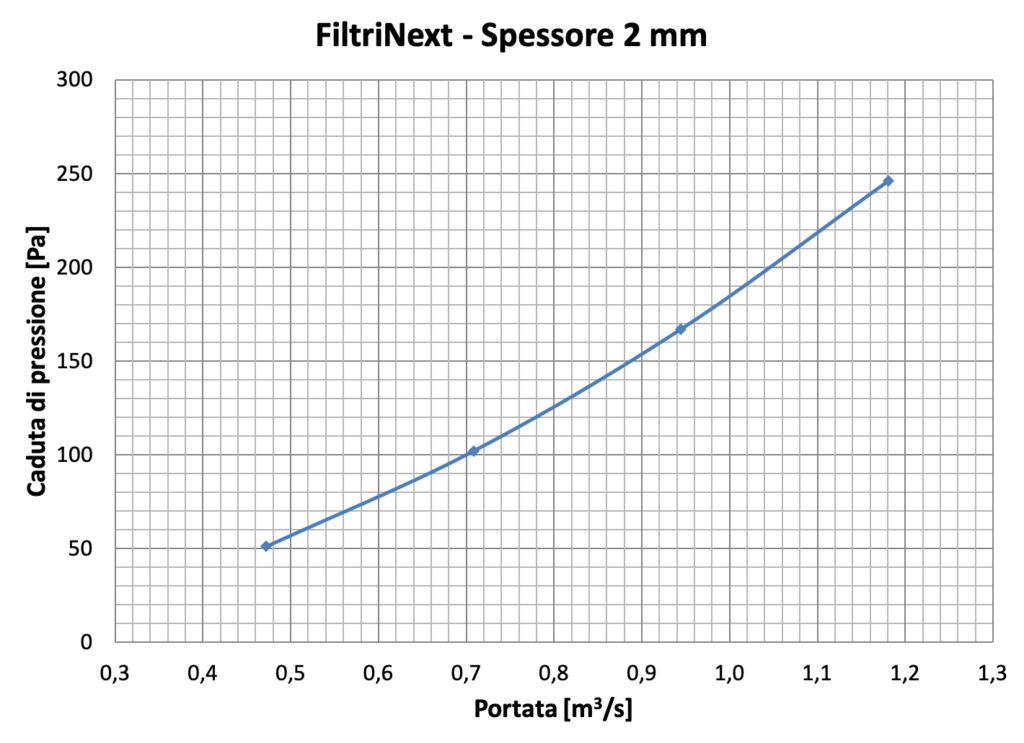

Pressure drop tests

Pressure drop testsSlim filter (2 mm)

Electron microscope analysis and EDS spectra

A scanning electron microscope examination combined with EDS microanalysis, conducted by the Politecnico di Milano, shows the presence of titanium dioxide on the treated filters (the gold peaks are due to the investigation technique)

Untreated filter

Untreated filterDetail

Untreated filterEDS spectrum

Untreated filter

Treated filterDetail

Treated filterEDS spectrum

Technical datasheet

PRODUCT EMI shielding triaxial nonwoven fabric
CODE 81.3D

GENERAL DESCRIPTION OF THE FILTER
Triaxial polyester fabric with diversified fiber density in the three X, Y and Z axes, stable up to 160 °C.
The additional nickel metallisation treatment (where present) is applied with a process covered by the European Soliani EMC patent and is stable against oxidation and saline corrosion.
TECHNICAL DESCRIPTION OF THE FILTER
APPLICATIONS filtrazione batterica
DESCRIPTION tessuto triassiale
SURFACE TREATMENT (OPTIONAL) nichel
THICKNESS 2 mm
MAX SURFACE RESISTIVITY <30 Ohm / sq
OPERATING TEMPERATURE from -40 to 160 ° C
TYPICAL SHIELDING EFFECTIVENESS NA
COMPRESSIBILITY (%) NA
ROHS CHARACTERISTICS compliant
REACH compliant

GENERAL DESCRIPTION SURFACE TREATMENT
Semitransparent sol containing crystalline titanium dioxide. Recommended for surface treatment to apply photocatalytic and antibacterial properties to various substrates. Suitable for structural components, finished and semi-finished products. After deposition and consolidation, the functionalized surface is stable in water and in moderately acidic or basic environments.

TECHNICAL DESCRIPTION SURFACE TREATMENT
DESCRIPTION Sol 121-AB
APPEARANCE Semi-transparent SOL
CHEMICAL COMPOSITION – CAS no. – CONCENTRATION
_ WATER – 7732-18-5 – 90–95%
_ TITANIUM DIOXIDE – 13463-67-7 – 1–2%
_ FUNCTIONALIZED SILICA: 1–2%
_ ISOPROPANOL – 67-63– 0: 3%
_ ACID – ≈1%
_ DOPING AGENT – ≈1%
_ METHANOL – 67-56-1 – <0.5%
_ SILVER SALTS – 1%

TECHNICAL DESCRIPTION OF THE FILTER
APPLICATIONS	filtrazione batterica
DESCRIPTION	tessuto triassiale
SURFACE TREATMENT (OPTIONAL)	nichel
THICKNESS	2 mm
MAX SURFACE RESISTIVITY	<30 Ohm / sq
OPERATING TEMPERATURE	from -40 to 160 ° C
TYPICAL SHIELDING EFFECTIVENESS	NA
COMPRESSIBILITY (%)	NA
ROHS CHARACTERISTICS	compliant
REACH	compliant

TECHNICAL DESCRIPTION SURFACE TREATMENT
DESCRIPTION	Sol 121-AB
APPEARANCE	Semi-transparent SOL
CHEMICAL COMPOSITION	– CAS no. – CONCENTRATION _ WATER – 7732-18-5 – 90–95% _ TITANIUM DIOXIDE – 13463-67-7 – 1–2% _ FUNCTIONALIZED SILICA: 1–2% _ ISOPROPANOL – 67-63– 0: 3% _ ACID – ≈1% _ DOPING AGENT – ≈1% _ METHANOL – 67-56-1 – <0.5% _ SILVER SALTS – 1%
